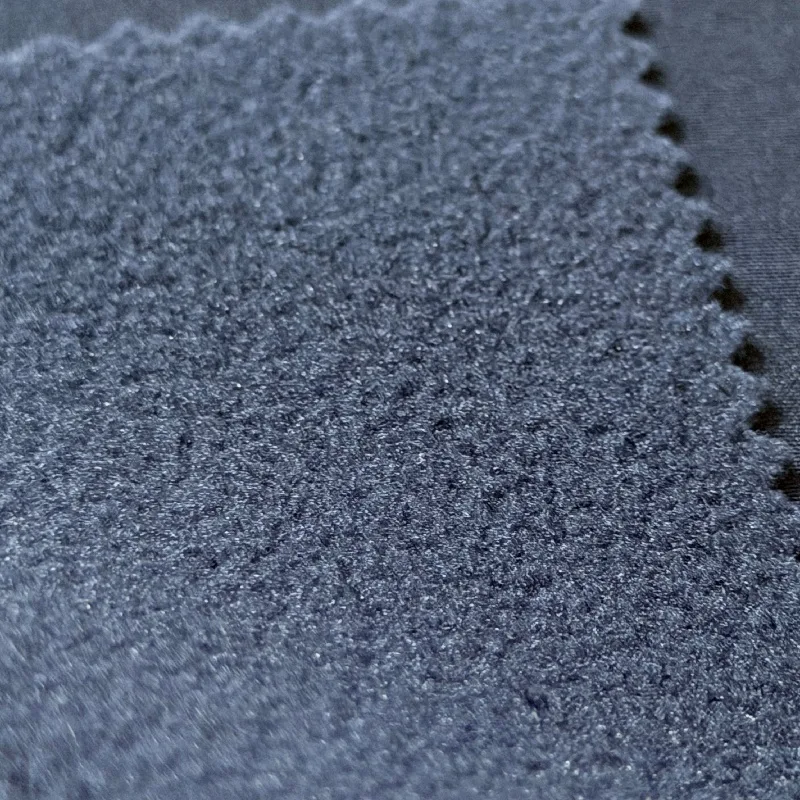

YA0500 original fabric view 1
Compare surface texture, fleece appearance and handle against the approved physical sample; screen color is indicative.
Click to enlarge
Supplied presentation and garment images are visualizations, not laboratory test reports or proof of finished-garment performance.
Softshell Fabric · YA0500
320 GSM 3-Layer Four-Way Stretch TPU Fleece Softshell Fabric
YA0500 combines a 95% polyester / 5% spandex, 100d four-way stretch face with 100% polyester 100d/144f polar fleece backing at 320 GSM. A low-permeability TPU membrane forms the middle layer. PD / C6 DWR is identified in the supplied specification.
320 GSM3-layer TPUPD / C6 DWR
- Composition
- Face: 95% Polyester / 5% Spandex, 100D four-way stretch; Back: 100% Polyester 100D/144F polar fleece
- Weight
- 320 GSM
- Width
- 56"
- MOQ
- 1,200 meters per color
- Customization
- Color, weight, construction & finishing
For an accurate recommendation, include your garment type, target market, required finish and estimated quantity.
1,200 m/colorCustom production MOQ
Samples on requestAsk for current color availability
TestableReports arranged to your standard
B2B supplyFor brands, factories & distributors
Product overview
YA0500: a fleece-backed starting point for cold-season apparel
The stretch face, TPU middle layer and dense fleece backing offer a three-layer development route for substantial softshell outerwear.
Supplied reference values: 10,000 mm waterproofness and H2O MVT 1,000 g/m²/24h. These are supplier-provided values, not independently verified results. Confirm test methods, specimen conditions, wash durability and seam-tape compatibility. PD is retained as the supplied finish code.
Fabric details
A closer look at the supplied fabric

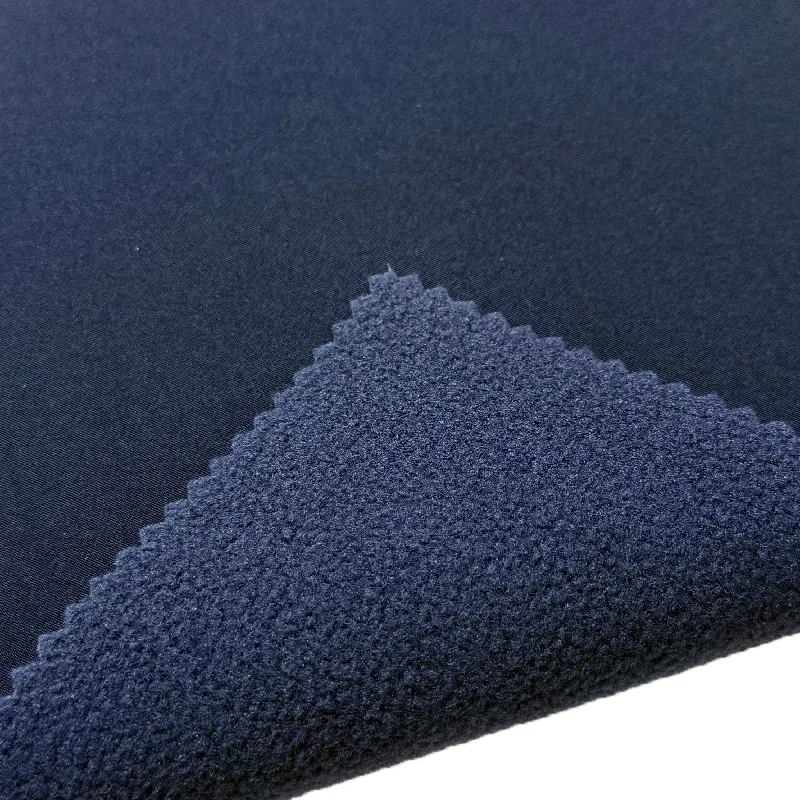

YA0500 original fabric view 2
Compare surface texture, fleece appearance and handle against the approved physical sample; screen color is indicative.

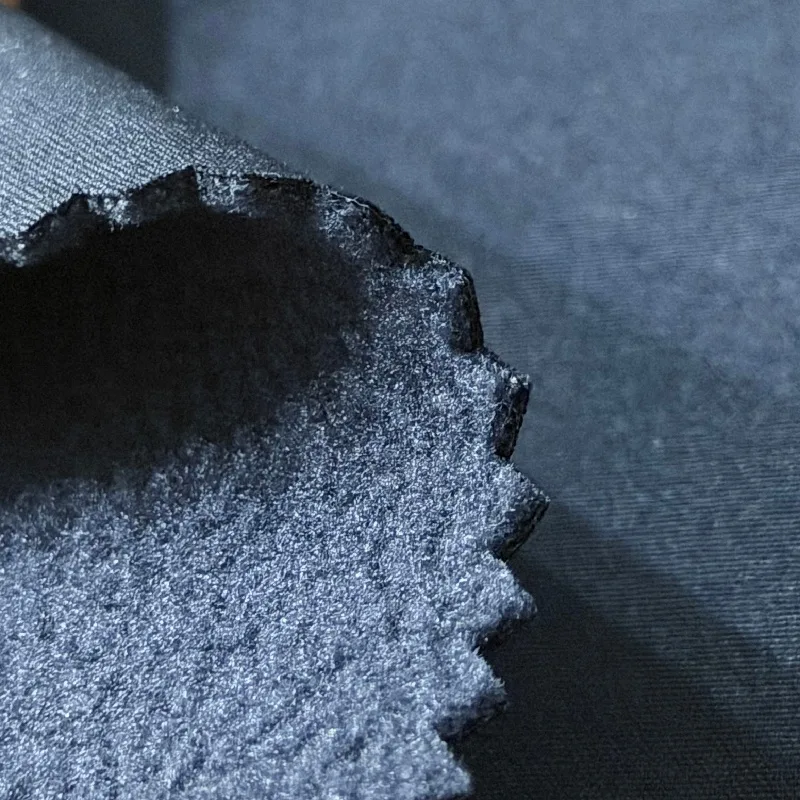

YA0500 original fabric view 3
Compare surface texture, fleece appearance and handle against the approved physical sample; screen color is indicative.
Technical data
Product specifications
Reference data for development and quotation. Final tolerances are confirmed on the approved sample.
- Model
- YA0500
- Face
- 95% Polyester / 5% Spandex, 100D four-way stretch
- Backing
- 100% Polyester 100D/144F polar fleece
- Construction

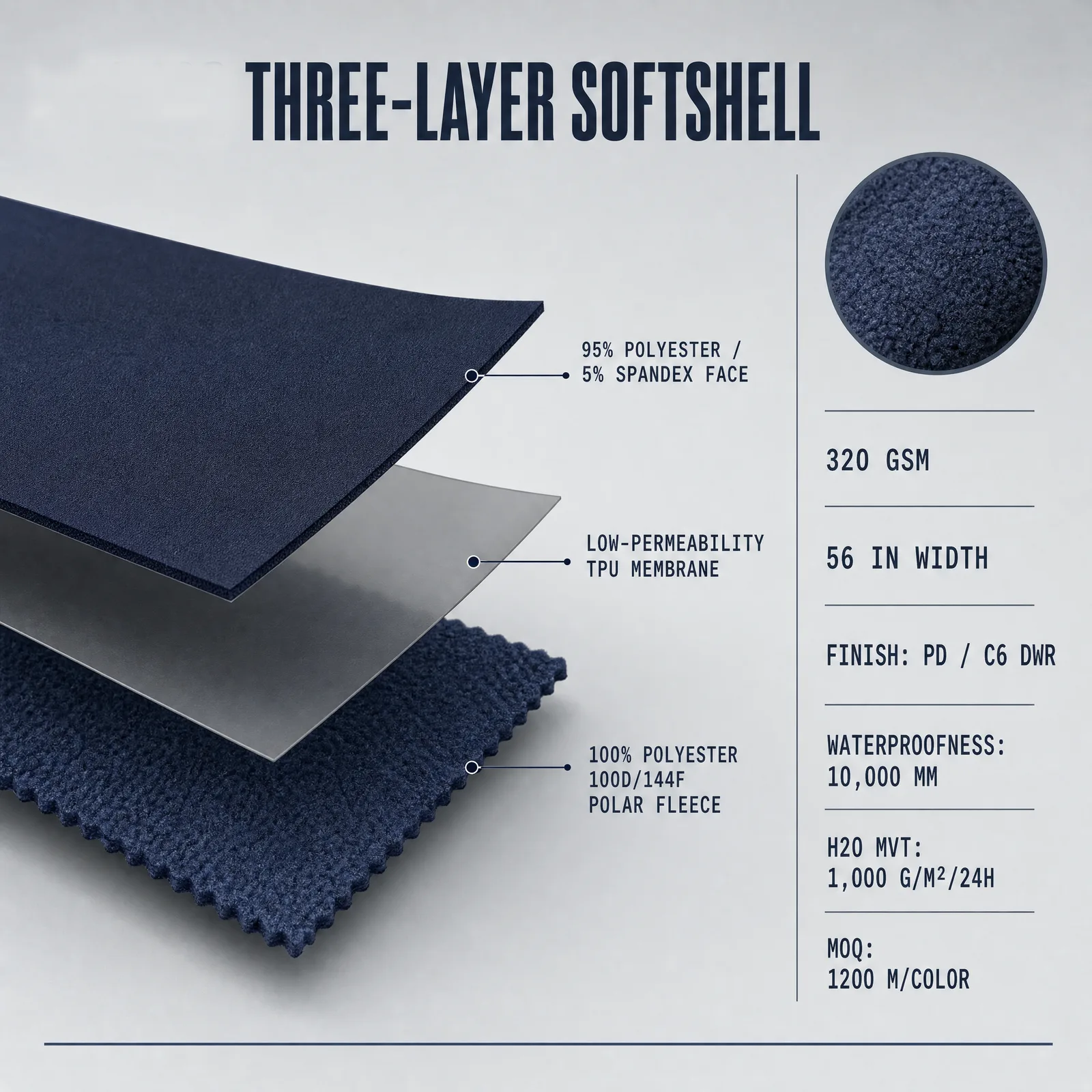

- Three-layer bonding with low-permeability TPU membrane
- Weight
- 320 GSM
- Usable width
- 56"
- Finish
- PD / C6 DWR
- MOQ
- 1,200 meters per color
- Supplied waterproof reference
- 10,000 mm
- Supplied H2O MVT reference
- 1,000 g/m²/24h
- Test methods
- To be confirmed; supplied values are not independent test reports
Core performance
What this construction is designed to offer
Construction-based characteristics, not laboratory pass claims. Numerical targets can be agreed and tested during development.
Three-layer TPU structure
Three-layer bonding with low-permeability TPU membrane. Bond strength, flex resistance and after-wash stability require sample evaluation.
Face and backing
95% Polyester / 5% Spandex, 100D four-way stretch; 100% Polyester 100D/144F polar fleece. Confirm whole-fabric stretch and recovery where required.
Water-repellent finishing
PD / C6 DWR. Agree the finish system, spray-rating target, wash cycles and destination-market requirements before approval.
Performance confirmation
Supplied reference values: 10,000 mm waterproofness and H2O MVT 1,000 g/m²/24h. These are supplier-provided values, not independently verified results. Confirm test methods, specimen conditions, wash durability and seam-tape compatibility. PD is retained as the supplied finish code.
Recommended applications
See the fabric in garment directions
Application images clarify the intended use while keeping the supplied fabric specification central.
Cold-weather softshell jackets
Evaluate the complete garment, intended climate, pattern, care method and required tests before approval.
Hiking jackets and trousers
Evaluate the complete garment, intended climate, pattern, care method and required tests before approval.
Ski softshell apparel
Evaluate the complete garment, intended climate, pattern, care method and required tests before approval.
Garment images are application visualizations. Final appearance depends on fabric development, pattern and approved color.
Custom development
Adjust the fabric around your collection
Share the intended garment, market and performance target so the construction and finishing route can be evaluated before sampling.
Custom colors and lab dipsWeight and usable widthFace hand feelFleece pile and densityDWR system and wash-durability targetBond strength and care requirements
MOQ: 1,200 meters per color
Feasibility, tolerances and production terms are confirmed after specification review.
Testing & reports
Agree the target first. Test the approved development.
We can discuss the appropriate method, submit the developed sample for third-party testing, and provide the resulting report.
- 1Define requirementApplication, market and performance level
- 2Confirm methodAgree standard, target value and sample condition
- 3Develop & approvePrepare the fabric sample for buyer review
- 4Submit for testingArrange testing and provide the issued report
Possible test scopeFiber contentWeight and widthBond peel strengthPilling and sheddingColorfastness and dimensional stabilityWater repellency and wash durabilityHydrostatic pressure and H2O MVTSeam-tape compatibility
Important: No numerical test result is claimed here. Test standards, targets and reporting arrangements are confirmed for each project.
From inquiry to order
A clear path from first contact to shipment
Each stage is confirmed before the next one begins, helping the sample, quotation and bulk fabric stay aligned.
Send inquiry
Share garment, color, GSM, finish, quantity and market.
Solution & quote
Confirm the proposed specification and quotation.
Sample approval
Approve quality, color and the required test plan.
Order & production
Begin bulk production against the approved sample.
Inspection & shipment
Inspect, pack and arrange the agreed delivery.
Buyer questions
Frequently asked questions
Can the color, weight and finishing be customized?
Yes. YA0500 can be developed around the options shown above. Feasibility and tolerances are confirmed after reviewing the intended garment and target.
What is the minimum order quantity?
1,200 meters per color.
Can you provide performance test reports?
Yes. We first discuss the intended standard and target, then arrange testing of the developed or approved sample and provide the issued report.
What information should I send for a quotation?
Please include YA0500, intended garment, target color, required weight and finish, destination market, estimated quantity and testing requirements.
Discuss YA0500
Tell us what your garment needs to do.
Send your target color, finish, application and quantity. We will review the development direction with you.
