Supplied 10K waterproof reference
The supplied specification lists 10,000 mm waterproofness. The applicable test method and production result are confirmed for the approved order.
Click to enlarge
The 10K/10K values are taken from the supplied product specification. Test methods, conditions and final production results should be confirmed against the approved sample and order specification.
Laminated Fabric · YA1418
240 GSM 3-Layer Polyester TPU Bird-Eye Shell Fabric 10K/10K
A 240 GSM three-layer shell fabric combining a polyester face, TPU membrane and 75D bird-eye textile backing. The supplied specification identifies 10,000 mm waterproofness and 10,000 g/m²/24h moisture-vapor transmission for performance-oriented shells and rainwear.
240 GSM3-layer TPUSupplied 10K/10K reference
- Composition
- 100% Polyester face; TPU membrane; 100% Polyester 75D bird-eye back
- Weight
- 240 GSM
- Width
- 56"
- MOQ
- 1,200 meters per color
- Customization
- Color, weight, construction & finishing
For an accurate recommendation, include your garment type, target market, required finish and estimated quantity.
1,200 m/colorCustom production MOQ
Sample-ledApprove quality before bulk
TestableReports arranged to your standard
B2B supplyFor brands, factories & distributors
Product overview
A bird-eye-backed three-layer shell with supplied 10K/10K performance

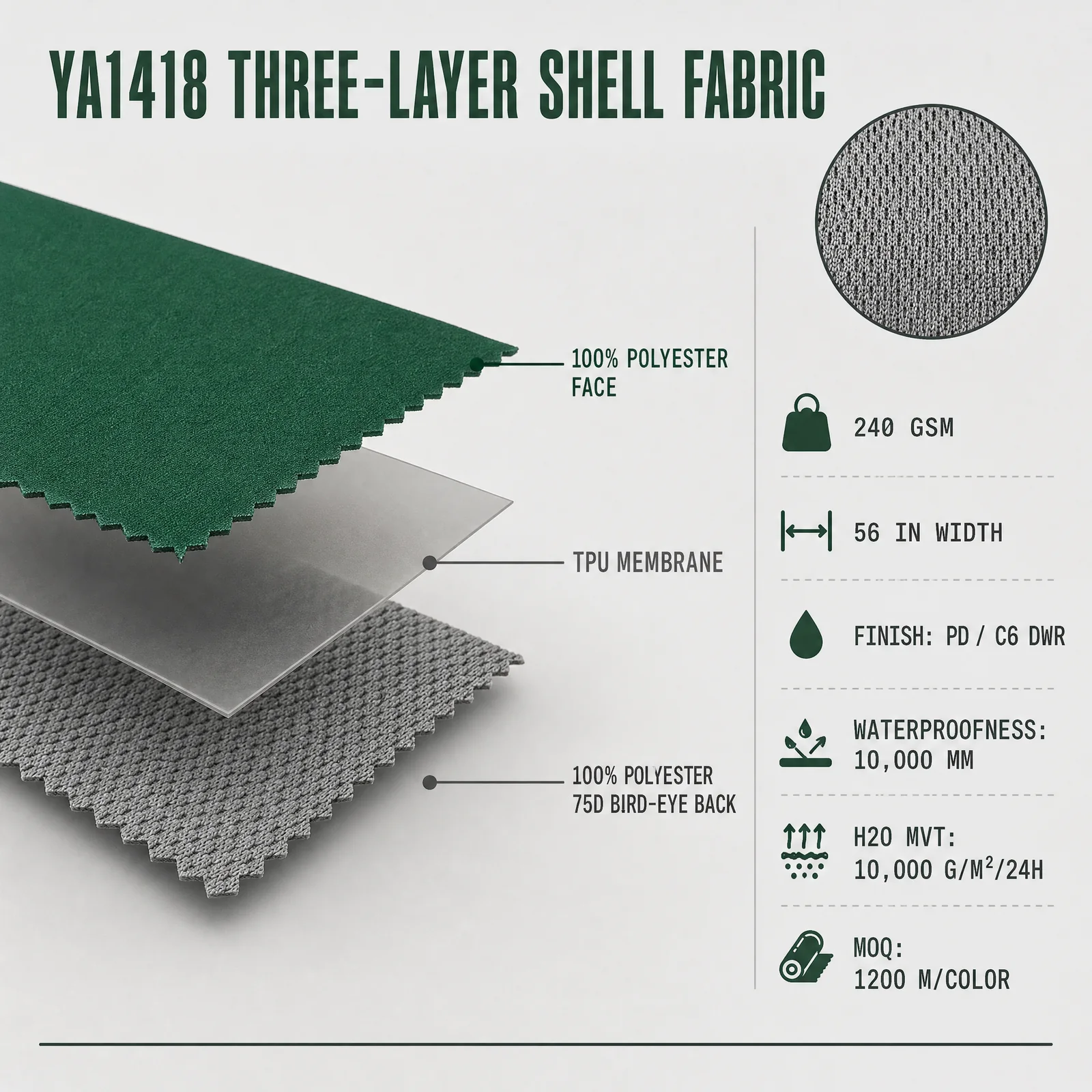

YA1418 combines a 100% polyester woven face, TPU membrane and 100% polyester 75D bird-eye backing. The deep forest-green reference face has a fine matte surface, while the gray textile reverse gives the inside a clean technical appearance.
At 240 GSM and 56 inches wide, the construction is positioned for waterproof shells, hiking and trekking jackets, commuter rainwear, technical workwear and functional uniforms. The supplied specification lists a PD/C6 DWR finish, 10,000 mm waterproofness and 10,000 g/m²/24h moisture-vapor transmission; these values remain subject to agreed test methods and production confirmation.
Technical data
Product specifications
Reference data for development and quotation. Final tolerances are confirmed on the approved sample.
- Product code
- YA1418
- Face
- 100% Polyester
- Middle layer
- TPU membrane
- Backing
- 100% Polyester 75D bird-eye textile
- Reference weight
- 240 GSM
- Reference width
- 56 inches
- Structure
- Three-layer lamination
- Finish
- PD / C6 DWR
- Supplied waterproofness
- 10,000 mm
- Supplied H2O MVT
- 10,000 g/m²/24h
- MOQ
- 1,200 meters per color
Core performance
What this construction is designed to offer
Construction-based characteristics, not laboratory pass claims. Numerical targets can be agreed and tested during development.
Supplied 10K moisture-vapor reference
The supplied specification lists 10,000 g/m²/24h H2O MVT, with test conditions confirmed before final performance claims are used.
75D bird-eye textile backing
The finished reverse provides a recognizable technical texture and keeps all three layers combined in one shell material.
C6 DWR face finish
The supplied finish direction supports surface water repellency, with spray rating and wash durability verified on the approved production fabric.
Recommended applications
See the fabric in garment directions
Application images clarify the intended use while keeping the supplied fabric specification central.
Hiking & trekking shells
For protective outdoor jackets developed around the supplied waterproof and moisture-vapor targets.
Rain & commuter shells
For clean technical rainwear using the matte face and finished bird-eye reverse.
Workwear & uniforms
For technical jackets and uniforms requiring a durable three-layer construction and specification-led testing.
Garment images are application visualizations. Final appearance depends on fabric development, pattern and approved color.
Supplied references
Additional fabric and finishing views
These supplied images support development discussions and are identified separately where color or finishing may differ from the navy reference sample.

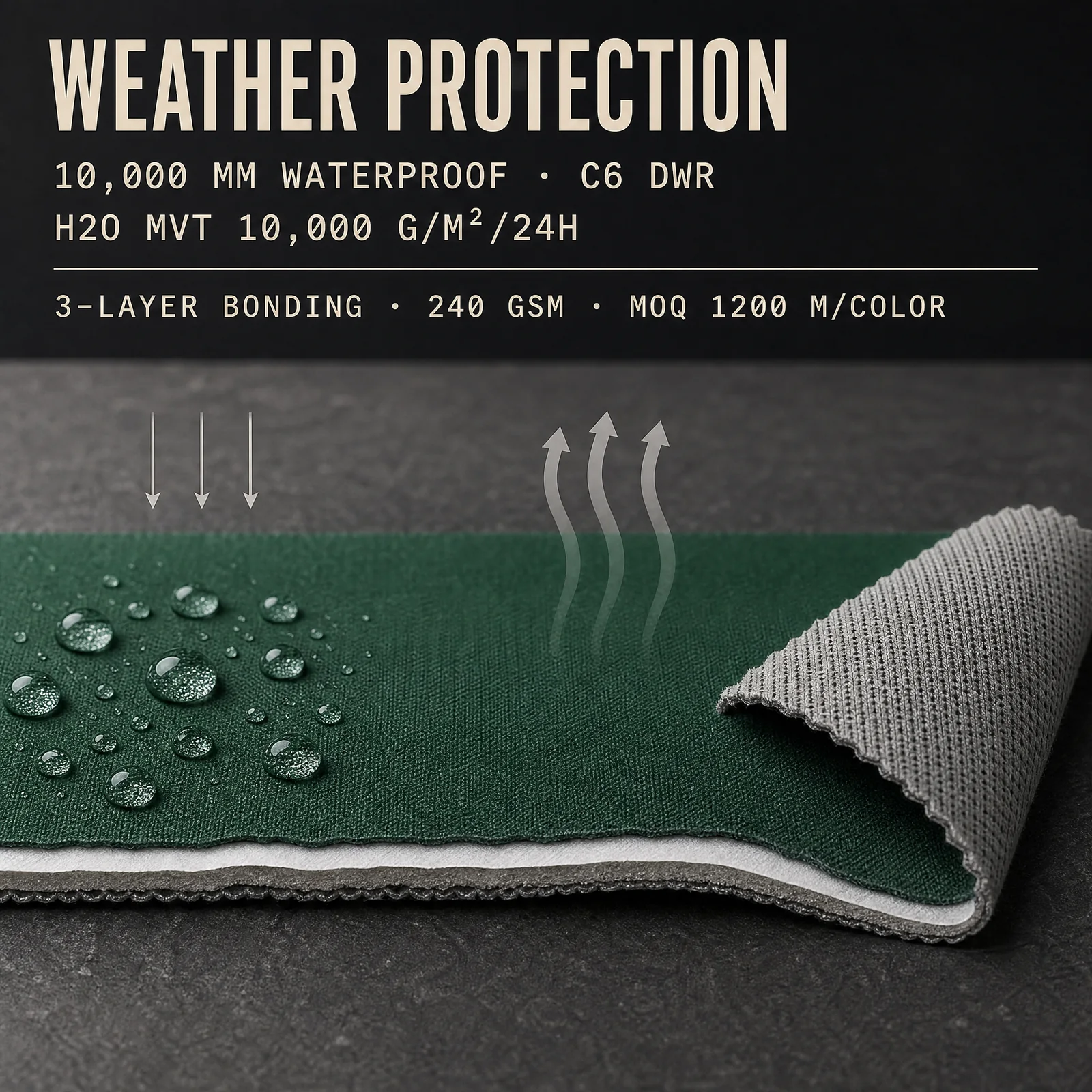

Supplied performance direction
A visual summary of the supplied waterproof, moisture-vapor and durability direction. Final claims follow the agreed test standard and approved construction.
Custom development
Adjust the fabric around your collection
Share the intended garment, market and performance target so the construction and finishing route can be evaluated before sampling.
Custom colorsAdjusted weight & widthFace yarn & densityTPU membrane gradeBacking structureDWR directionHand-feel adjustmentPerformance targets
MOQ: 1,200 meters per color
Feasibility, tolerances and production terms are confirmed after specification review.
Testing & reports
Agree the target first. Test the approved development.
We can discuss the appropriate method, submit the developed sample for third-party testing, and provide the resulting report.
- 1Define requirementApplication, market and performance level
- 2Confirm methodAgree standard, target value and sample condition
- 3Develop & approvePrepare the fabric sample for buyer review
- 4Submit for testingArrange testing and provide the issued report
Possible test scopeHydrostatic pressureMoisture-vapor transmissionDWR spray ratingLamination bond strengthAir permeabilityAbrasion & pilling resistanceColorfastness
Important: No numerical test result is claimed here. Test standards, targets and reporting arrangements are confirmed for each project.
From inquiry to order
A clear path from first contact to shipment
Each stage is confirmed before the next one begins, helping the sample, quotation and bulk fabric stay aligned.
Send inquiry
Share garment, color, GSM, finish, quantity and market.
Solution & quote
Confirm the proposed specification and quotation.
Sample approval
Approve quality, color and the required test plan.
Order & production
Begin bulk production against the approved sample.
Inspection & shipment
Inspect, pack and arrange the agreed delivery.
Buyer questions
Frequently asked questions
Can the color, weight and finishing be customized?
Yes. YA1418 can be developed around the options shown above. Feasibility and tolerances are confirmed after reviewing the intended garment and target.
What is the minimum order quantity?
1,200 meters per color.
Can you provide performance test reports?
Yes. We first discuss the intended standard and target, then arrange testing of the developed or approved sample and provide the issued report.
What information should I send for a quotation?
Please include YA1418, intended garment, target color, required weight and finish, destination market, estimated quantity and testing requirements.
Discuss YA1418
Tell us what your garment needs to do.
Send your target color, finish, application and quantity. We will review the development direction with you.
