Three-layer construction
Face fabric, TPU membrane and fleece backing are laminated into one material for streamlined outerwear construction.
Click to enlarge
The membrane overview image is a general development reference supplied by Yunai Textile. The final YA6009 membrane grade and backing are confirmed against the approved specification.
Softshell Fabric · YA6009
320 GSM 3-Layer TPU Softshell Fabric
A medium-heavy three-layer softshell combining a polyester-spandex woven face, TPU membrane and brushed polyester fleece backing. Developed for cold-season outerwear that needs structure, movement and a soft inner surface.
3-layer TPU320 GSMBrushed fleece backing
- Composition
- Face: 92% Polyester / 8% Spandex; TPU membrane; 100% Polyester back
- Weight
- 320 GSM
- Width
- 57/58"
- MOQ
- Stock options available; 1,500 meters per color for custom production
- Customization
- Color, weight, construction & finishing
For an accurate recommendation, include your garment type, target market, required finish and estimated quantity.
Stock / 1,500 mCustom production MOQ
Stock options availableAsk for current color availability
TestableReports arranged to your standard
B2B supplyFor brands, factories & distributors
Product overview
Three coordinated layers for cold-season softshell development
YA6009 combines a 92% polyester / 8% spandex woven face, a TPU functional membrane and a 100% polyester brushed-fleece backing. The matte face gives garments a clean technical appearance, while the raised reverse creates a softer inner surface for winter construction.
At 320 GSM, the fabric provides a medium-heavy platform for ski outerwear, winter uniforms, mountain softshells, hiking jackets and cold-season workwear. Waterproofness, moisture-vapor transmission, wind resistance and other membrane claims must be defined and tested against the selected TPU grade and final lamination.
Technical data
Product specifications
Reference data for development and quotation. Final tolerances are confirmed on the approved sample.
- Product code
- YA6009
- Face
- 92% Polyester / 8% Spandex woven
- Middle layer
- TPU functional membrane
- Backing
- 100% Polyester brushed fleece
- Reference weight
- 320 GSM
- Reference width
- 57/58 inches
- Structure
- Three-layer lamination
- Appearance
- Matte technical face
- Reverse
- Soft raised fleece
- MOQ
- Stock options; 1,500 meters/color for custom production
Core performance
What this construction is designed to offer
Construction-based characteristics, not laboratory pass claims. Numerical targets can be agreed and tested during development.
Medium-heavy structure
The 320 GSM reference weight provides body for winter jackets, uniforms and cold-season workwear.

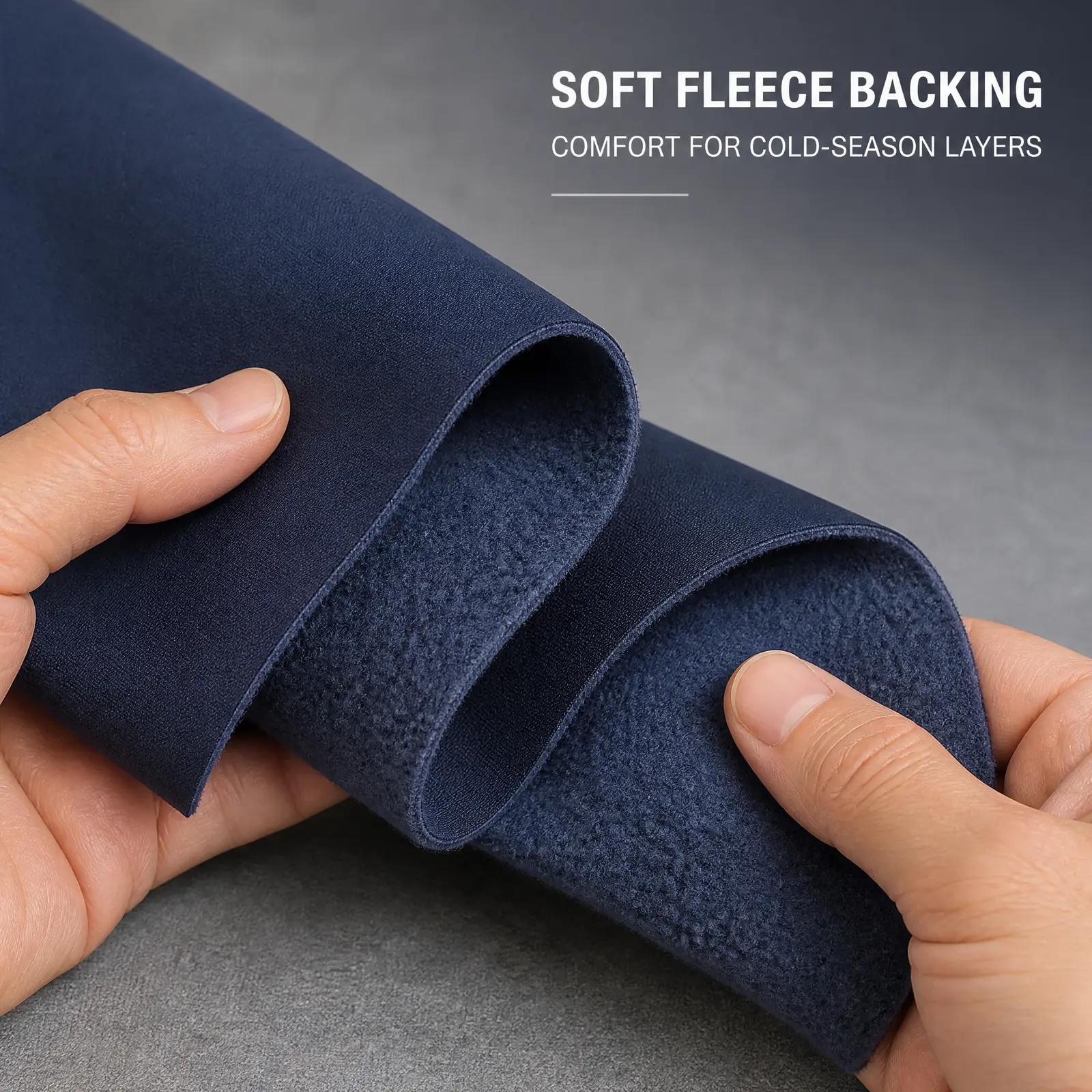

Soft brushed reverse
The fleece backing creates a softer inner surface and may reduce the need for a separate loose lining in selected designs.
Stretch woven face
The spandex-containing face supports movement. Final stretch and recovery depend on the complete laminated construction.
Recommended applications
See the fabric in garment directions
Application images clarify the intended use while keeping the supplied fabric specification central.
Ski outerwear
For structured winter shells developed around defined membrane and weather-protection targets.
Winter uniforms
For uniforms and workwear requiring a substantial laminated fabric with a soft reverse.
Mountain softshells
For hiking and softshell jackets designed around movement, warmth and technical appearance.
Garment images are application visualizations. Final appearance depends on fabric development, pattern and approved color.
Supplied references
Additional fabric and finishing views
These supplied images support development discussions and are identified separately where color or finishing may differ from the navy reference sample.

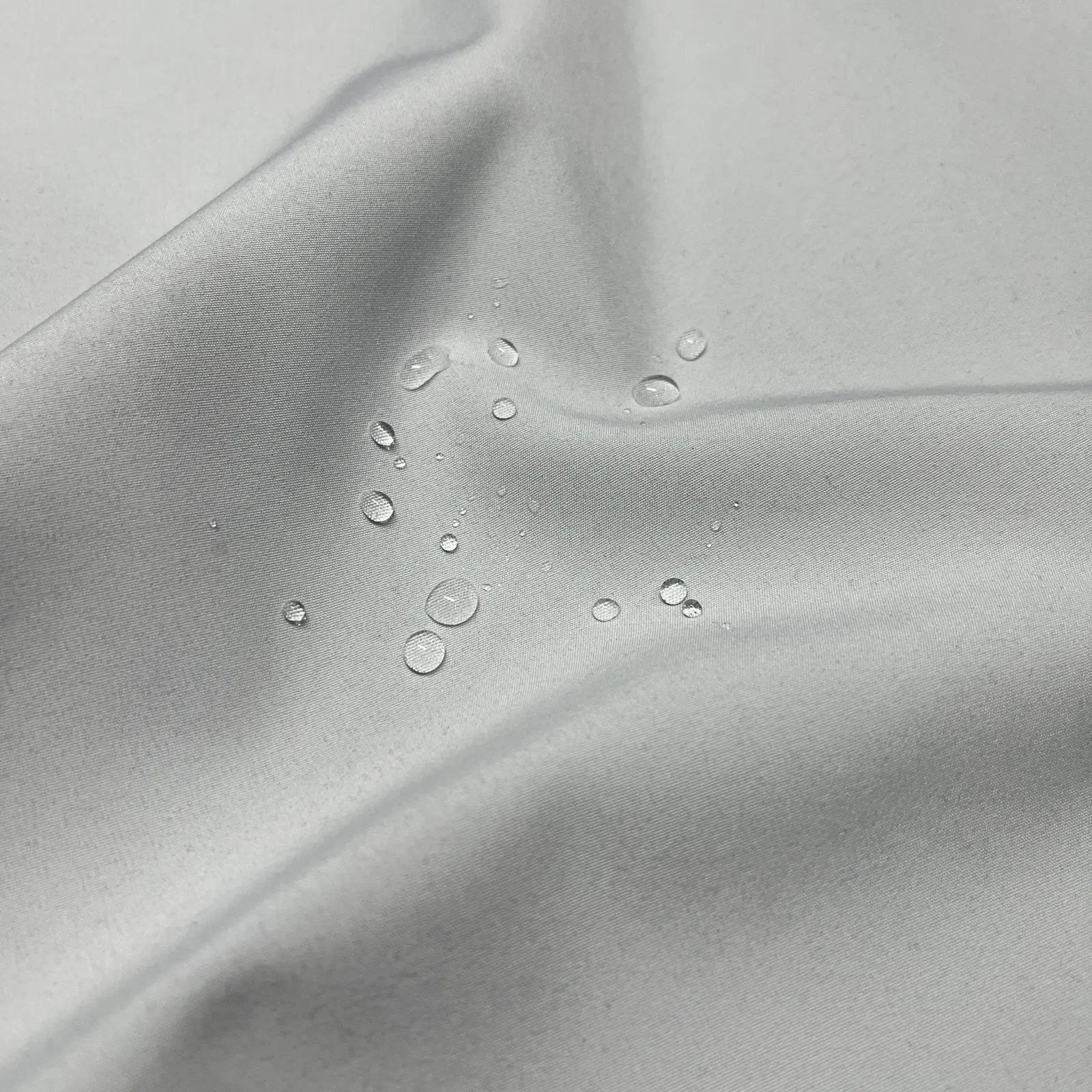

Optional DWR direction
A supplied finishing reference shown in an alternate color. Spray rating and durability are confirmed only after the selected finish is tested.

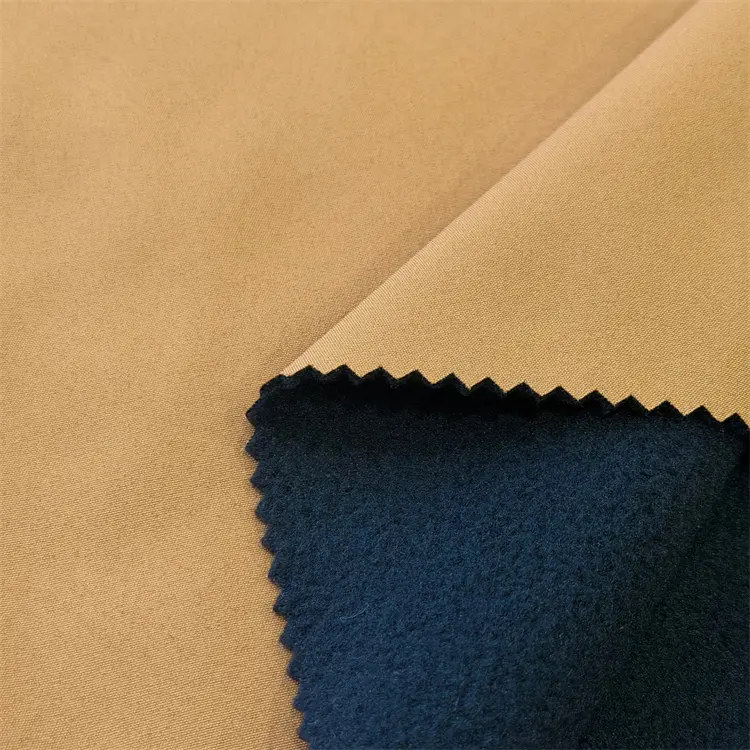

Face and fleece options
Face color, fleece color and pile direction can be discussed during custom development and sampling.
Custom development
Adjust the fabric around your collection
Share the intended garment, market and performance target so the construction and finishing route can be evaluated before sampling.
Face & fleece colorsAdjusted weightTPU membrane gradeFleece pileStretch levelDWR finishAnti-pilling directionPackaging & garment development
MOQ: Stock options available; 1,500 meters per color for custom production
Feasibility, tolerances and production terms are confirmed after specification review.
Testing & reports
Agree the target first. Test the approved development.
We can discuss the appropriate method, submit the developed sample for third-party testing, and provide the resulting report.
- 1Define requirementApplication, market and performance level
- 2Confirm methodAgree standard, target value and sample condition
- 3Develop & approvePrepare the fabric sample for buyer review
- 4Submit for testingArrange testing and provide the issued report
Possible test scopeHydrostatic pressureMoisture-vapor transmissionAir permeabilityLamination bond strengthStretch & recoveryDWR spray ratingPilling & abrasion resistance
Important: No numerical test result is claimed here. Test standards, targets and reporting arrangements are confirmed for each project.
From inquiry to order
A clear path from first contact to shipment
Each stage is confirmed before the next one begins, helping the sample, quotation and bulk fabric stay aligned.
Send inquiry
Share garment, color, GSM, finish, quantity and market.
Solution & quote
Confirm the proposed specification and quotation.
Sample approval
Approve quality, color and the required test plan.
Order & production
Begin bulk production against the approved sample.
Inspection & shipment
Inspect, pack and arrange the agreed delivery.
Buyer questions
Frequently asked questions
Can the color, weight and finishing be customized?
Yes. YA6009 can be developed around the options shown above. Feasibility and tolerances are confirmed after reviewing the intended garment and target.
What is the minimum order quantity?
Stock options available; 1,500 meters per color for custom production.
Can you provide performance test reports?
Yes. We first discuss the intended standard and target, then arrange testing of the developed or approved sample and provide the issued report.
What information should I send for a quotation?
Please include YA6009, intended garment, target color, required weight and finish, destination market, estimated quantity and testing requirements.
Discuss YA6009
Tell us what your garment needs to do.
Send your target color, finish, application and quantity. We will review the development direction with you.
