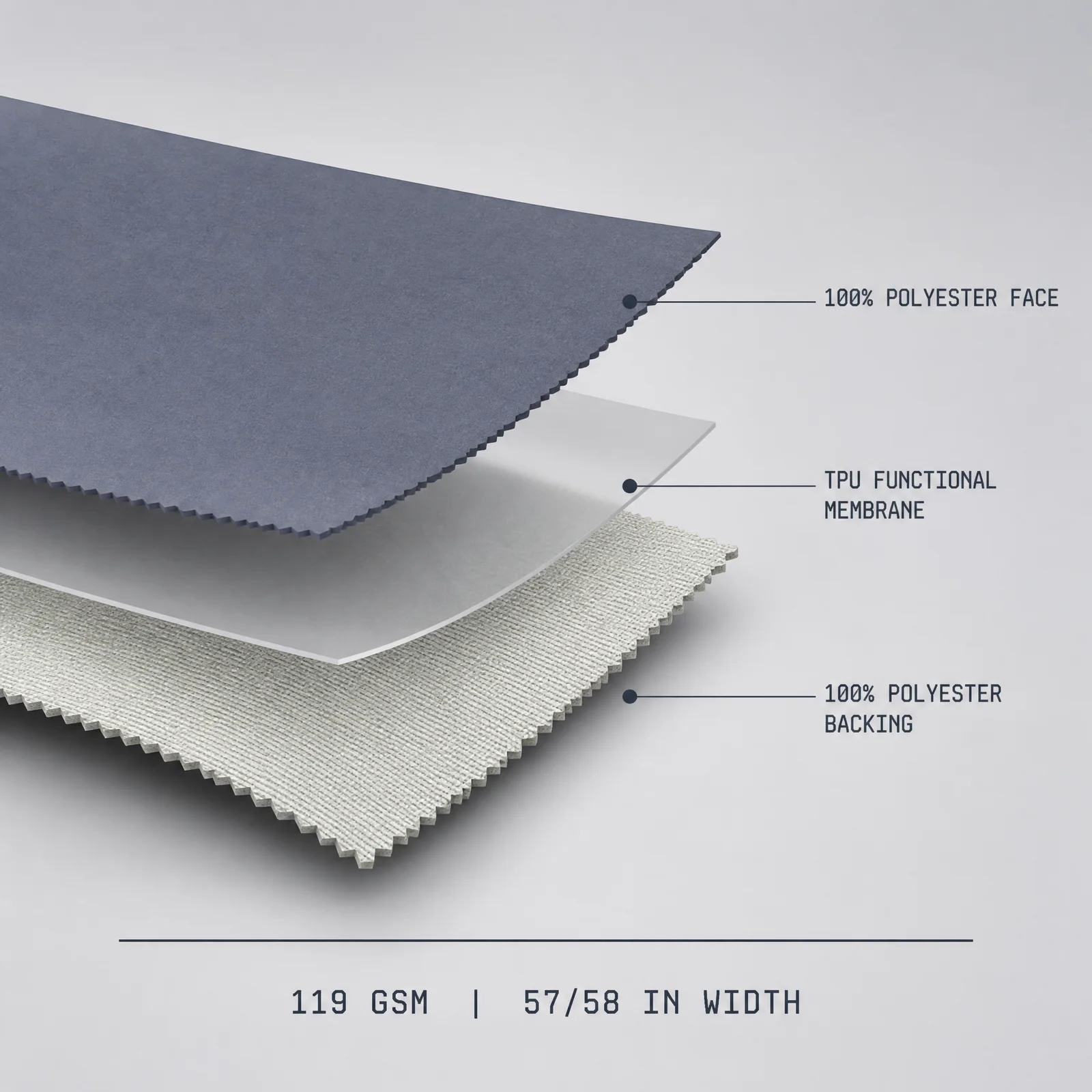

Lightweight three-layer build
Face, membrane and textile backing are combined at a 119 GSM reference weight for reduced-bulk outerwear.
Click to enlarge
The membrane overview image is a general development reference supplied by Yunai Textile. Final TPU grade, backing and performance targets are confirmed against the approved YA85604 specification.
Laminated Fabric · YA85604
119 GSM 3-Layer Polyester TPU Laminated Fabric
A lightweight 119 GSM three-layer fabric combining a smooth polyester face, TPU functional membrane and fine polyester textile backing. Developed for streamlined technical shells, modern rainwear and commuter outerwear.
119 GSM lightweightThree-layer TPUFinished textile backing
- Composition
- 100% Polyester face; TPU membrane; 100% Polyester back
- Weight
- 119 GSM
- Width
- 57/58"
- MOQ
- 1,500 meters per color for custom production
- Customization
- Color, weight, construction & finishing
For an accurate recommendation, include your garment type, target market, required finish and estimated quantity.
1,500 m/colorCustom production MOQ
Sample-ledApprove quality before bulk
TestableReports arranged to your standard
B2B supplyFor brands, factories & distributors
Product overview
A clean three-layer laminate with reduced bulk
YA85604 combines a smooth 100% polyester face, TPU functional membrane and fine 100% polyester textile backing in one three-layer laminated construction. The muted blue-gray reference face provides a calm technical appearance, while the finished reverse gives the inside a clean textile look.
At 119 GSM and 57/58 inches wide, the material provides a light platform for technical shell jackets, fashion raincoats, commuter outerwear, packable rain jackets and transitional-weather coats. Functional values depend on the selected membrane, lamination and finishing specification.
Technical data
Product specifications
Reference data for development and quotation. Final tolerances are confirmed on the approved sample.
- Product code
- YA85604
- Face
- 100% Polyester
- Middle layer
- TPU functional membrane
- Backing
- 100% Polyester textile
- Reference weight
- 119 GSM
- Reference width
- 57/58 inches
- Structure
- Three-layer lamination
- Surface
- Smooth matte face
- Reverse
- Fine finished textile backing
- MOQ
- 1,500 meters per color
Core performance
What this construction is designed to offer
Construction-based characteristics, not laboratory pass claims. Numerical targets can be agreed and tested during development.
Finished woven reverse
The fine backing gives the inside a clean textile appearance without a loose separate lining.
TPU membrane platform
The middle layer supports weather-protection development, with all ratings confirmed on the approved construction.
Smooth matte face
The muted technical surface supports both outdoor shells and modern commuter rainwear.
Recommended applications
See the fabric in garment directions
Application images clarify the intended use while keeping the supplied fabric specification central.
Lightweight shells
For technical hiking and packable shells developed around a defined membrane and test target.
Fashion raincoats
For streamlined urban rainwear using a smooth face and clean textile-backed construction.
Commuter outerwear
For transitional coats and travel layers balancing light weight with specification-led protection.
Garment images are application visualizations. Final appearance depends on fabric development, pattern and approved color.
Supplied references
Additional fabric and finishing views
These supplied images support development discussions and are identified separately where color or finishing may differ from the navy reference sample.

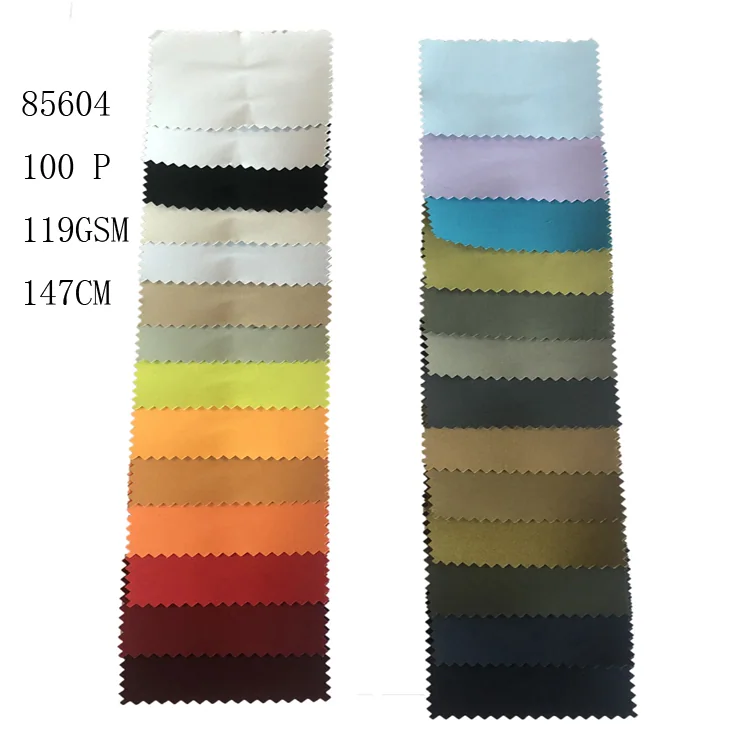

Supplied color directions
The supplied swatches show a broad reference range. Exact color, availability and final laminated appearance are confirmed during development.

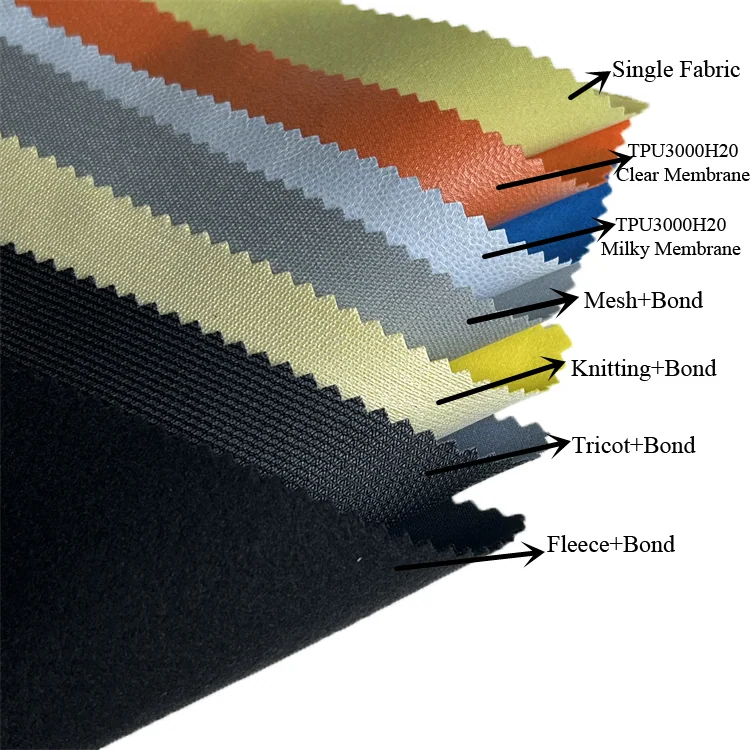

Membrane development reference
A general supplied overview. The exact TPU membrane and backing combination is confirmed for the approved product specification.
Custom development
Adjust the fabric around your collection
Share the intended garment, market and performance target so the construction and finishing route can be evaluated before sampling.
Custom colorsAdjusted weight & widthFace yarn & densityBacking structureTPU membrane gradeDWR finishHand-feel adjustmentPrinting or foil direction
MOQ: 1,500 meters per color for custom production
Feasibility, tolerances and production terms are confirmed after specification review.
Testing & reports
Agree the target first. Test the approved development.
We can discuss the appropriate method, submit the developed sample for third-party testing, and provide the resulting report.
- 1Define requirementApplication, market and performance level
- 2Confirm methodAgree standard, target value and sample condition
- 3Develop & approvePrepare the fabric sample for buyer review
- 4Submit for testingArrange testing and provide the issued report
Possible test scopeHydrostatic pressureMoisture-vapor transmissionAir permeabilityLamination bond strengthDWR spray ratingPilling resistanceUV or anti-static performance when applied
Important: No numerical test result is claimed here. Test standards, targets and reporting arrangements are confirmed for each project.
From inquiry to order
A clear path from first contact to shipment
Each stage is confirmed before the next one begins, helping the sample, quotation and bulk fabric stay aligned.
Send inquiry
Share garment, color, GSM, finish, quantity and market.
Solution & quote
Confirm the proposed specification and quotation.
Sample approval
Approve quality, color and the required test plan.
Order & production
Begin bulk production against the approved sample.
Inspection & shipment
Inspect, pack and arrange the agreed delivery.
Buyer questions
Frequently asked questions
Can the color, weight and finishing be customized?
Yes. YA85604 can be developed around the options shown above. Feasibility and tolerances are confirmed after reviewing the intended garment and target.
What is the minimum order quantity?
1,500 meters per color for custom production.
Can you provide performance test reports?
Yes. We first discuss the intended standard and target, then arrange testing of the developed or approved sample and provide the issued report.
What information should I send for a quotation?
Please include YA85604, intended garment, target color, required weight and finish, destination market, estimated quantity and testing requirements.
Discuss YA85604
Tell us what your garment needs to do.
Send your target color, finish, application and quantity. We will review the development direction with you.
